[번역] Life of a Packet in Kubernetes— Part 3

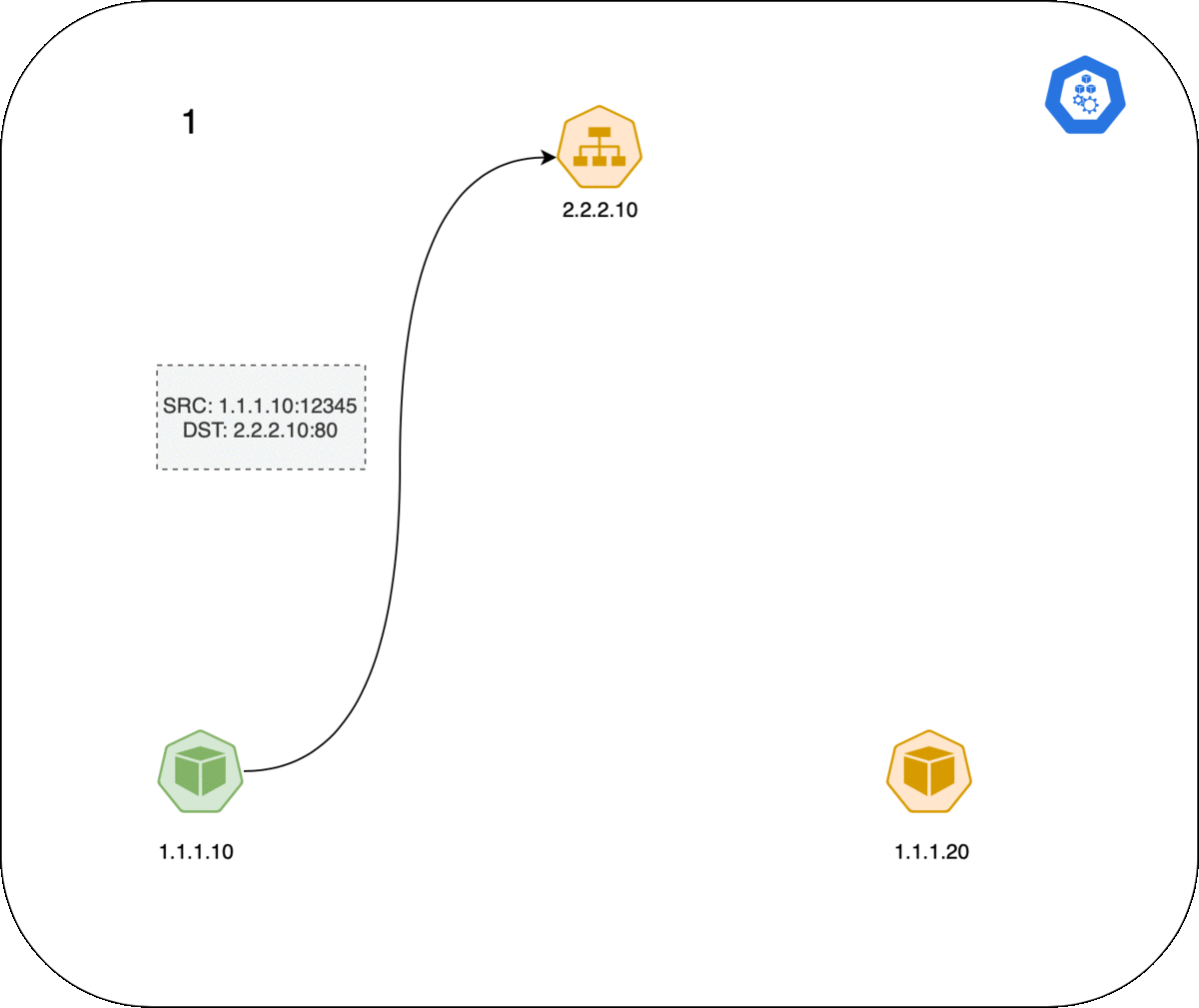

node-1$ sysctl -w net.ipv4.ip_forward=1
net.ipv4.ip_forward = 1
node-1$ cat /proc/sys/net/ipv4/ip_forward
1

net.ipv4.ip_forward = 1

master $ kubectl get svc webapp
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
webapp NodePort 10.103.46.104 <none> 80:31380/TCP 3d13h
master $ kubectl get ep webapp
NAME ENDPOINTS AGE
webapp 10.244.120.102:80,10.244.120.103:80 3d13h
master $

master $ kubectl exec -i -t dnsutils -- nslookup webapp.default
Server:  10.96.0.10
Address: 10.96.0.10#53
Name: webapp.default.svc.cluster.local
Address: 10.103.46.104

$ sudo iptables -t nat -L PREROUTING | column -t
Chain            PREROUTING  (policy  ACCEPT)
target           prot        opt      source    destination
cali-PREROUTING  all         --       anywhere  anywhere     /*        cali:6gwbT8clXdHdC1b1  */
**KUBE-SERVICES**    all         --       anywhere  anywhere     /*        kubernetes             service   portals  */
DOCKER           all         --       anywhere  anywhere     ADDRTYPE  match                  dst-type  LOCAL

$ sudo iptables -t nat -L KUBE-SERVICES | column -t
Chain                      KUBE-SERVICES  (2   references)
target                     prot           opt  source          destination
**KUBE-MARK-MASQ**             tcp            --   !10.244.0.0/16  10.103.46.104   /*  default/webapp                   cluster  IP          */     tcp   dpt:www
**KUBE-SVC-2IRACUALRELARSND**  tcp            --   anywhere        10.103.46.104   /*  default/webapp                   cluster  IP          */     tcp   dpt:www
**KUBE-NODEPORTS**             all            --   anywhere        anywhere        /*  kubernetes                       service  nodeports;  NOTE:  this  must        be  the  last  rule  in  this  chain  */  ADDRTYPE  match  dst-type  LOCAL

$ sudo iptables -t nat -L KUBE-NODEPORTS | column -t
Chain                      KUBE-NODEPORTS  (1   references)
target                     prot            opt  source       destination
KUBE-MARK-MASQ             tcp             --   anywhere     anywhere     /*  default/webapp  */  tcp  dpt:31380
KUBE-SVC-2IRACUALRELARSND  tcp             --   anywhere     anywhere     /*  default/webapp  */  tcp  dpt:31380

# Statistic mode random -> Random load-balancing between endpoints
$ sudo iptables -t nat -L KUBE-SVC-2IRACUALRELARSND | column -t
Chain                      KUBE-SVC-2IRACUALRELARSND  (2   references)
target                     prot                       opt  source       destination
KUBE-SEP-AO6KYGU752IZFEZ4  all                        --   anywhere     anywhere     /*  default/webapp  */  statistic  mode  random  probability  0.50000000000
KUBE-SEP-PJFBSHHDX4VZAOXM  all                        --   anywhere     anywhere     /*  default/webapp  */

$ sudo iptables -t nat -L KUBE-SEP-AO6KYGU752IZFEZ4 | column -t
Chain           KUBE-SEP-AO6KYGU752IZFEZ4  (1   references)
target          prot                       opt  source          destination
KUBE-MARK-MASQ  all                        --   10.244.120.102  anywhere     /*  default/webapp  */
DNAT            tcp                        --   anywhere        anywhere     /*  default/webapp  */  tcp  to:10.244.120.102:80

$ sudo iptables -t nat -L KUBE-SEP-PJFBSHHDX4VZAOXM | column -t
Chain           KUBE-SEP-PJFBSHHDX4VZAOXM  (1   references)
target          prot                       opt  source          destination
KUBE-MARK-MASQ  all                        --   10.244.120.103  anywhere     /*  default/webapp  */
DNAT            tcp                        --   anywhere        anywhere     /*  default/webapp  */  tcp  to:10.244.120.103:80

$ sudo iptables -t nat -L KUBE-MARK-MASQ | column -t
Chain   KUBE-MARK-MASQ  (24  references)
target  prot            opt  source       destination
MARK    all             --   anywhere     anywhere     MARK  or  0x4000

master $ kubectl get nodes
NAME           STATUS   ROLES    AGE    VERSION
minikube       Ready    master   6d1h   v1.19.2
minikube-m02   Ready    <none>   85m    v1.19.2

master $ kubectl get pods nginx-deployment-7759cc5c66-p45tz -o wide
NAME                                READY   STATUS    RESTARTS   AGE   IP               NODE       NOMINATED NODE   READINESS GATES
nginx-deployment-7759cc5c66-p45tz   1/1     Running   0          29m   10.244.120.111   minikube   <none>           <none>

master $ kubectl get svc webapp -o wide -o jsonpath={.spec.externalTrafficPolicy}
Local

master $ kubectl get svc webapp -o wide
NAME     TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)        AGE   SELECTOR
webapp   NodePort   10.111.243.62   <none>        80:30080/TCP   29m   app=webserver

$ sudo iptables -t nat -L KUBE-NODEPORTS
Chain KUBE-NODEPORTS (1 references)
target prot opt source destination
KUBE-MARK-MASQ tcp — 127.0.0.0/8 anywhere /* default/webapp */ tcp dpt:30080
**KUBE-XLB-2IRACUALRELARSND** tcp — anywhere anywhere /* default/webapp */ tcp dpt:30080

$ sudo iptables -t nat -L KUBE-XLB-2IRACUALRELARSND
Chain KUBE-XLB-2IRACUALRELARSND (1 references)
target prot opt source destination
KUBE-SVC-2IRACUALRELARSND all — 10.244.0.0/16 anywhere /* Redirect pods trying to reach external loadbalancer VIP to clusterIP */
KUBE-MARK-MASQ all — anywhere anywhere /* masquerade LOCAL traffic for default/webapp LB IP */ ADDRTYPE match src-type LOCAL
KUBE-SVC-2IRACUALRELARSND all — anywhere anywhere /* route LOCAL traffic for default/webapp LB IP to service chain */ ADDRTYPE match src-type LOCAL
**KUBE-MARK-DROP** all — anywhere anywhere /* default/webapp has no local endpoints */

$ sudo iptables -t nat -L KUBE-NODEPORTS
Chain KUBE-NODEPORTS (1 references)
target prot opt source destination
KUBE-MARK-MASQ tcp — 127.0.0.0/8 anywhere /* default/webapp */ tcp dpt:30080
KUBE-XLB-2IRACUALRELARSND tcp — anywhere anywhere /* default/webapp */ tcp dpt:30080

$ sudo iptables -t nat -L KUBE-XLB-2IRACUALRELARSND
Chain KUBE-XLB-2IRACUALRELARSND (1 references)
target prot opt source destination
KUBE-SVC-2IRACUALRELARSND all — 10.244.0.0/16 anywhere /* Redirect pods trying to reach external loadbalancer VIP to clusterIP */
KUBE-MARK-MASQ all — anywhere anywhere /* masquerade LOCAL traffic for default/webapp LB IP */ ADDRTYPE match src-type LOCAL
KUBE-SVC-2IRACUALRELARSND all — anywhere anywhere /* route LOCAL traffic for default/webapp LB IP to service chain */ ADDRTYPE match src-type LOCAL
KUBE-SEP-5T4S2ILYSXWY3R2J all — anywhere anywhere /* Balancing rule 0 for default/webapp */

$ sudo iptables -t nat -L KUBE-SVC-2IRACUALRELARSND
Chain KUBE-SVC-2IRACUALRELARSND (3 references)
target prot opt source destination
KUBE-SEP-5T4S2ILYSXWY3R2J all — anywhere anywhere /* default/webapp */

master $ kubectl get svc webapp-hs
NAME        TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
webapp-hs   ClusterIP   None         <none>        80/TCP    24s

master $ kubectl get ep webapp-hs
NAME        ENDPOINTS                             AGE
webapp-hs   10.244.120.109:80,10.244.120.110:80   31s

master $ kubectl exec -it frontend-8b474f47-zdqdv -- /bin/sh
$ curl backend
backend-867fd6dff-mjf92
$ curl db
curl: (7) Failed to connect to db port 80: Connection timed out

master $ kubectl exec -it backend-867fd6dff-mjf92 -- /bin/sh
$ curl db
db-8d66ff5f7-bp6kf

---
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: allow-db-access
spec:
  podSelector:
    matchLabels:
      **app: "db"**
  policyTypes:
  - Ingress
  ingress:
  - from:
    - podSelector:
        matchLabels:
          **networking/allow-db-access: "true"**
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: backend
  labels:
    app: backend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: backend
  template:
    metadata:
      labels:
        app: backend
        **networking/allow-db-access: "true"**
    spec:
      volumes:
      - name: workdir
        emptyDir: {}
      containers:
      - name: nginx
        image: nginx:1.14.2
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 80
        volumeMounts:
        - name: workdir
          mountPath: /usr/share/nginx/html
      initContainers:
      - name: install
        image: busybox
        imagePullPolicy: IfNotPresent
        command: ['sh', '-c', "echo $HOSTNAME > /work-dir/index.html"]
        volumeMounts:
        - name: workdir
          mountPath: "/work-dir"
...

master $ calicoctl get networkPolicy --output yaml
apiVersion: projectcalico.org/v3
items:
- apiVersion: projectcalico.org/v3
  kind: NetworkPolicy
  metadata:
    creationTimestamp: "2020-11-05T05:26:27Z"
    name: knp.default.allow-db-access
    namespace: default
    resourceVersion: /53872
    uid: 1b3eb093-b1a8-4429-a77d-a9a054a6ae90
  spec:
    ingress:
    - action: Allow
      destination: {}
      source:
        selector: projectcalico.org/orchestrator == 'k8s' && networking/allow-db-access
          == 'true'
    order: 1000
    selector: projectcalico.org/orchestrator == 'k8s' && app == 'db'
    types:
    - Ingress
kind: NetworkPolicyList
metadata:
  resourceVersion: 56821/56821

master $ calicoctl get workloadEndpoint
WORKLOAD                         NODE       NETWORKS        INTERFACE
backend-867fd6dff-mjf92          minikube   10.88.0.27/32   cali2b1490aa46a
db-8d66ff5f7-bp6kf               minikube   10.88.0.26/32   cali95aa86cbb2a
frontend-8b474f47-zdqdv          minikube   10.88.0.24/32   cali505cfbeac50

$ sudo iptables-save | grep cali95aa86cbb2a
:cali-fw-cali95aa86cbb2a - [0:0]
:cali-tw-cali95aa86cbb2a - [0:0]
-A cali-from-wl-dispatch -i cali95aa86cbb2a -m comment --comment "cali:R489GtivXlno-SCP" -g cali-fw-cali95aa86cbb2a
-A cali-fw-cali95aa86cbb2a -m comment --comment "cali:3XN24uu3MS3PMvfM" -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
-A cali-fw-cali95aa86cbb2a -m comment --comment "cali:xyfc0rlfldUi6JAS" -m conntrack --ctstate INVALID -j DROP
-A cali-fw-cali95aa86cbb2a -m comment --comment "cali:wG4_76ot8e_QgXek" -j MARK --set-xmark 0x0/0x10000
-A cali-fw-cali95aa86cbb2a -p udp -m comment --comment "cali:Ze6pH1ZM5N1pe76G" -m comment --comment "Drop VXLAN encapped packets originating in pods" -m multiport --dports 4789 -j DROP
-A cali-fw-cali95aa86cbb2a -p ipencap -m comment --comment "cali:3bjax7tRUEJ2Uzew" -m comment --comment "Drop IPinIP encapped packets originating in pods" -j DROP
-A cali-fw-cali95aa86cbb2a -m comment --comment "cali:0pCFB_VsKq1qUOGl" -j cali-pro-kns.default
-A cali-fw-cali95aa86cbb2a -m comment --comment "cali:mbgUOxlInVlwb2Ie" -m comment --comment "Return if profile accepted" -m mark --mark 0x10000/0x10000 -j RETURN
-A cali-fw-cali95aa86cbb2a -m comment --comment "cali:I7GVOQegh6Wd9EMv" -j cali-pro-ksa.default.default
-A cali-fw-cali95aa86cbb2a -m comment --comment "cali:g5ViWVLiyVrKX91C" -m comment --comment "Return if profile accepted" -m mark --mark 0x10000/0x10000 -j RETURN
-A cali-fw-cali95aa86cbb2a -m comment --comment "cali:RBmQDo38EoPmxJ0I" -m comment --comment "Drop if no profiles matched" -j DROP
-A cali-to-wl-dispatch -o cali95aa86cbb2a -m comment --comment "cali:v3sEoNToLYUOg7M6" -g cali-tw-cali95aa86cbb2a
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:eCrqwxNk3cKw9Eq6" -m conntrack --ctstate RELATED,ESTABLISHED -j ACCEPT
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:_krp5nzavhAu5avJ" -m conntrack --ctstate INVALID -j DROP
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:Cu-tVtfKKu413YTT" -j MARK --set-xmark 0x0/0x10000
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:leBL64hpAXM9y4nk" -m comment --comment "Start of policies" -j MARK --set-xmark 0x0/0x20000
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:pm-LK-c1ra31tRwz" -m mark --mark 0x0/0x20000 -j cali-pi-_tTE-E7yY40ogArNVgKt
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:q_zG8dAujKUIBe0Q" -m comment --comment "Return if policy accepted" -m mark --mark 0x10000/0x10000 -j RETURN
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:FUDVBYh1Yr6tVRgq" -m comment --comment "Drop if no policies passed packet" -m mark --mark 0x0/0x20000 -j DROP
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:X19Z-Pa0qidaNsMH" -j cali-pri-kns.default
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:Ljj0xNidsduxDGUb" -m comment --comment "Return if profile accepted" -m mark --mark 0x10000/0x10000 -j RETURN
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:0z9RRvvZI9Gud0Wv" -j cali-pri-ksa.default.default
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:pNCpK-SOYelSULC1" -m comment --comment "Return if profile accepted" -m mark --mark 0x10000/0x10000 -j RETURN
-A cali-tw-cali95aa86cbb2a -m comment --comment "cali:sMkvrxvxj13WlTMK" -m comment --comment "Drop if no profiles matched" -j DROP
$ sudo iptables-save -t filter | grep cali-pi-_tTE-E7yY40ogArNVgKt
:cali-pi-_tTE-E7yY40ogArNVgKt - [0:0]
-A cali-pi-_tTE-E7yY40ogArNVgKt -m comment --comment "cali:M4Und37HGrw6jUk8" -m set --match-set cali40s:LrVD8vMIGQDyv8Y7sPFB1Ge src -j MARK --set-xmark 0x10000/0x10000
-A cali-pi-_tTE-E7yY40ogArNVgKt -m comment --comment "cali:sEnlfZagUFRSPRoe" -m mark --mark 0x10000/0x10000 -j RETURN

minikube $ ipset list
Name: cali40s:LrVD8vMIGQDyv8Y7sPFB1Ge
Type: hash:net
Revision: 6
Header: family inet hashsize 1024 maxelem 1048576
Size in memory: 408
References: 3
Number of entries: 1
Members:
10.88.0.27
